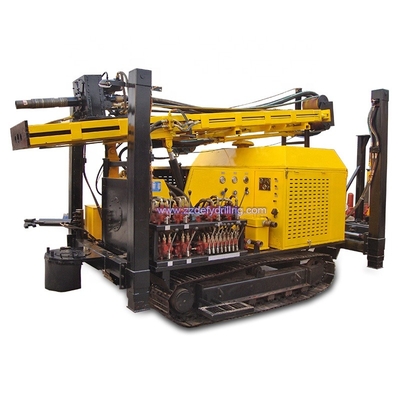

High Drilling Efficiency Air Compressor 300m Portable Hammer Rock Water Borehole Drilling Rig DTH

1.0 Sets
MOQ
High Drilling Efficiency Air Compressor 300m Portable Hammer Rock Water Borehole Drilling Rig DTH
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Applicable Industries: Construction works , Energy & Mining
Showroom Location: None
Condition: New
Type: Rotary Drilling Rig
Power Type: Diesel
Usage: Water Well
Voltage: Customized
Dimension(L*W*H): 5200*2080*2760 mm
Weight: 7500kg
Warranty: 1 Year
Marketing Type: Hot Product 2021
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Bearing, Engine, Gearbox
Key Selling Points: Low Maintenance Cost
Drilling Diameter: 300mm, 100mm, 200mm, 450mm, 115mm, 150mm, 254mm, 219mm, 305mm
Drilling Depth: Max.300m
Product name: Portable 300m DTH Hammer Rock Water Borehole Well Drilling Rig
Drilling depth: 300m
Drilling diameter: 115-305mm
Control system:: Hydraulic control system
Application:: hard rock, water well drilling rig
Rotation torque(Nm): 3600/7200
Drill rod caliber(mm): 76/89/ mm
Feature: High Drilling Efficiency
Keyword: DTH Borehole Drilling Rig
Drilling method: Pneumatic Hammer Drilling
Local Service Location: None
After-sales Service Provided: Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
Certificazione: ISO, BV, SGS
Informazioni di base
Certificazione: ISO, BV, SGS
Termini di pagamento e spedizione
Packaging Details: Portable Air compressor 300m DTH Hammer Rock Water Borehole Well Drilling Rig in one 20 feet container
Supply Ability: 100 Set/Sets per Month
Descrizione di prodotto
Product Description

Brief introduction

1, It's a light weight, high efficiency and multi-function drilling equipment

2, suitable for drilling water wells, agricultural irrigation well, geothermal air-conditioning hole and other uses, especially for water engineering in mountainous and rock areas.

3, DFQ series can work efficiently under all kinds of geological structure, even very hard rocks, gravel, pebble stratum.

Advantages:


1. Adopts the new type hydraulic technology, equipped with two rotary hydraulic motors with high torque, Max. torque comes to 7200 N · m, spindle rotating speed is between 45~125rpm, 6 grades to switch.

2.Two large caliber high pressure cylinders, 12 tons lifting power, ensure the drill rig have reliable propulsion and lifting force when drilling deep holes.

3.Multi-cylinder water-cooled engine by Famous brand provide abundant power for the hydraulic system.

4.Six rotation and propulsion speeds can meet the demand of different soil and rock drilling.

5.Centralized control of the hydraulic control console, convenient to operate. Unique pump group design, easy maintenance, save the maintenance cost

6.Crawler chassis, strong cross-country ability and easy to transport.

Technical Parameter
water well drilling rig
Item
Unit
Specification
Drilling hole diameter
mm
115~300
Drilling depth(m)
m
300
Work pressure
(MPa)
1.05~2.46
Air consumption
(m³/min)
10~30
Lifting force
(t)
12.5
Rotation torque
(Nm)
3600/7200
Drill rod caliber(mm)
mm
76/89
Drill rod length(m)
m
3
Dimension(mm)
mm
5200*2080*2760
Total weight
(Kg)
7500
Detailed Image




Power Head

Fully hydraulic system, large power, fast drilling speed.




   Steel crawler chassis

   Easy moving on mountain area.




instrument board

Clearly showing the drilling condition




      Operation handle

         Compact structure, Easy operation

Working site
Packing & Delivery
Packaging
Size
5200*2080*2760 mm
Weight
7.5t



Packaging Details
1, Drilling Rig main machine in container

2, accessories in Wooden Case or according to your requirement
Other models
Our Company

 Zhengzhou Defy Mechanical & Electrical Equipment CO., Ltd. locates in High-tech zone of Zhengzhou City, China. Our factory dedicates to manufacturing drilling rigs since 1970s, more than 40 years experience of production and development make our product quality rank in the leading position at home and abroad.

Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. Our professional engineers and sales team, offering technical support and useful advices whenever you need.
