Caratteristiche

Specificazioni

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Construction worksÂ , Energy & Mining

Showroom Location: None

Condition: New

Type: Rotary Drilling Rig

Power Type: Electric

Usage: Ore

Dimension(L*W*H): 3300*1000*1500mm

Weight: 1350kg

Warranty: 1 YEAR(Except consumables and man-made damage)

Local ServiceÂ Location: Brazil, Russia

Certificazione: ISO9001;ISO14001;CE

Name: Hydraulic anchor drilling rig

Application: Geological Exploration

Drill Angle: -90~30Â°

Drill Head Max. Lifting Force: 45KN

Drill Head Max. Thrust Force: 30KN

Drill Head Feeding Stroke: 1800mm

Electromotor Power: 30

Drill Head Rotary Speed: 5-130rpm

Borehole Depth: 60-70m

Overall Dimension: 3300*1000*1500mm

Informazioni di base

Certificazione: ISO9001;ISO14001;CE

Termini di pagamento e spedizione

Packaging Details: cartons

Supply Ability: 10 Set/Sets per Month

Descrizione di prodotto

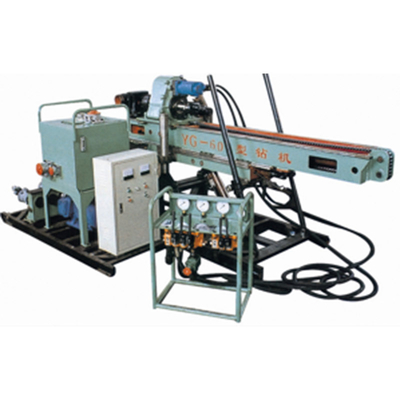

YG-60 hydraulic small portable anchor drill head 45KN head max. lifting force for anchoring rig Drill

Product Display

Model		YG-60
Borehole Depth		60-70
Borehole Diameter		Φ110-Φ180mm
Recommended Drill Rod		Φ73-1500mm; Φ89-1500mm
Drill Angle		-90~30°
Drill Head Rotary Speed(FR/RE)		5~130rpm
Drill Head Feeding Stroke		1800mm
Drill Head Max. Lifting Force		45KN
Drill Head Max. Thrust Force		30KN
Electromotor Power		22KW
Bigger Part Weight,appx.		250kg
Owerall Dimension(Drill Reduce Type)		3300X1000X1500mm

Application Scenario
