Ore Hydraulic&Pneumatic Crawler Drilling Rig

1 Set
MOQ
Ore Hydraulic&Pneumatic Crawler Drilling Rig
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Condition: New
Type: Core Drilling Rig
Power Type: Diesel
Usage: Ore
Voltage: 380V
Dimension(L*W*H): 7250X2750X2800mm
Weight: 7000kg
Warranty: 1 Year
After-sales Service Provided: Online support, No overseas service provided
Certificazione: ISO9001:2008
Informazioni di base
Certificazione: ISO9001:2008
Termini di pagamento e spedizione
Packaging Details: standard packing
Supply Ability: 50 Set/Sets per Month
Descrizione di prodotto

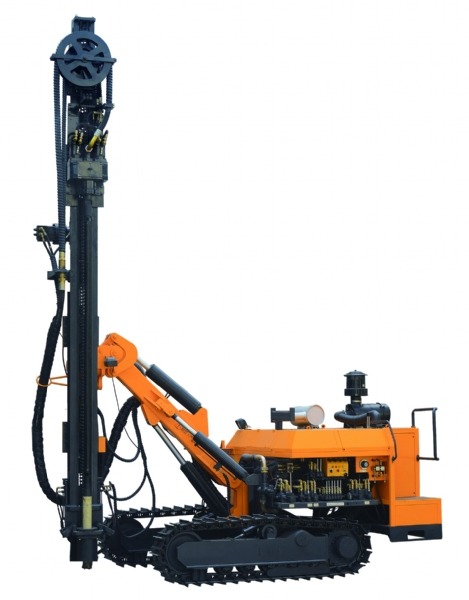

Hydraulic&Pneumatic Crawler Drilling Rig 976D

Item No.JSYX976
Drilling hardness6~20
Borehole diameter90~203mm
drilling depth45~120m
rotary speed0~185r/min
rotary torque4500~6800N.m
Lifting force6600kg
Feed stroke/one proplusion length3000mm
drilling rod length3000mm
drilling rod diameter76mm,102mm
compensation length of beam1220mm
Gradeability35°
Power4 cylinder diesel engine YC41125Z-T21 92kw
electric engine Y55KW-4P 55kw
pitch angle of carriagedown 90°
pitch angle of boomvertical outward 90°,upward 158°
swing angle of boomleft 30°,right 50°
working air pressure0.7~2.5Mpa
air consumption10~28m³/min
N.W7400kg
out dimesion6900*2100*2150mm
horizontal hole hightforward 180°
(whole drill rig length 8100mm),rightward 90° height 600mm

Company Information

Our Services

FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: Which trade term can you accept?
A2: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
